Tianjin Yidingfeng Powertrain Technology Co., Ltd. has the complete power domain control unit technology, including VCU, BMS, VBU, DCU, TMM, FCU, and etc. Based on the development trend of new energy vehicles and electronic and electrical architecture, as well as domestic and foreign standards and market demands, with a professional research and development team and a comprehensive automation production system, it has launched the DCU3000 for the entire vehicle power domain. This product has undergone systematic analysis and design for the power domain requirements in the process of vehicle electronic and electrical architecture transformation. It is compatible with control functions such as VCU, BMS, and thermal management, and supports UDS fault diagnosis, vehicle Ethernet communication, and other functions with stronger performance and wider applicability.
1.Overview
The DCU3000 is a domain control unit developed by Tianjin Yidingfeng Powertrain Technology Co., Ltd. It is suitable for pure electric vehicles and hybrid vehicles with a power supply system of 12V, and can also be used for hardware in the loop testing of rapid prototyping. It has a flexible basic software interface and integration environment, and the application software supports model-based development. The software can be customized according to customer needs.
2.Product Features
2.1 The application software supports RTE and non RTE interfaces based on AUTOSAR4.2 ;
2.2 The Functional Safety ISO26262-ASIL-C;
2.3 Supporting CAN and CANFD communication, CAN communication interface wake-up, and communication fault monitoring (power self-diagnosis, message timeout, node loss, etc.) and communication fault handling (Busoff processing) function;
2.4 Supporting 100M Ethernet communication, LIN communication, and SENT sensor signal acquisition function for vehicle communication;
2.5 Supporting common diagnostic services, UDS parameter customization, customizable secure access algorithms, grades, and parameters, customizable bootloader flashing process and parameters, and FOTA backup and refresh function;
2.6 Supporting AUTOSAR network management, in collaboration with various network segments and controllers to sleep and wake up, freely configuring network management parameters, and customizing network management messages;
2.7 Supporting CyberSecurity technology for automotive.

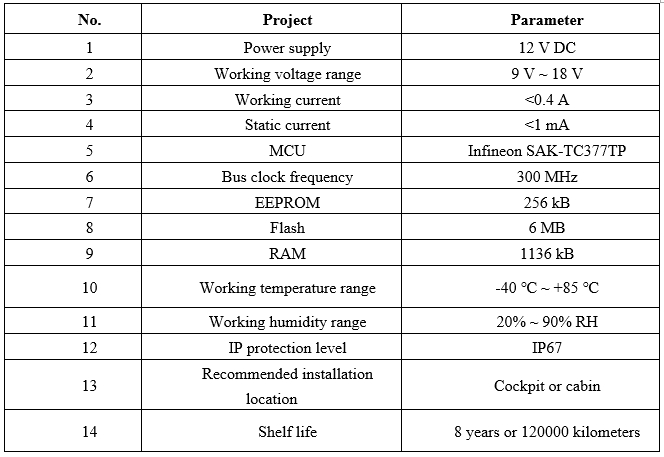

3.Main Parameters Table
Interface Resources Table
4.Customer Pay-back
4.1 DCU3000 is developed by local enterprises, which can meet the requirements of vehicle power domain or other domain control under electronic and electrical architecture;
4.2 To assist customers in upgrading their vehicles based on the demand for vehicle electronic and electrical architecture transformation;
4.3 Functional Security and CyberSecurity design requirements and providing customers with reliable products;
4.4 Rich hardware interface resources can meet the needs from different customers;
4.5 Fully developed cooperation mode to support different types of cooperation modes for customers, such as turn-key, self-developed application software development, and white box development.
