1.Overview

VCU4300 is a domestically produced control unit developed by Tianjin Yidingfeng Powertrain Technology Co., Ltd. It is suitable for pure electric and hybrid electric vehicles with a power supply system of 12V based on the development technology and experience a number of years. A master chip with multi-core 32-bit automotive grade processing is used with a clock bus speed of 300MHz. This product is used for flexible basic software interfaces and integration environment. The application software supports a model-based development approach and can be customized according to customer needs.

2.Technical Parameters

2.1  Main Parameters of VCU4300

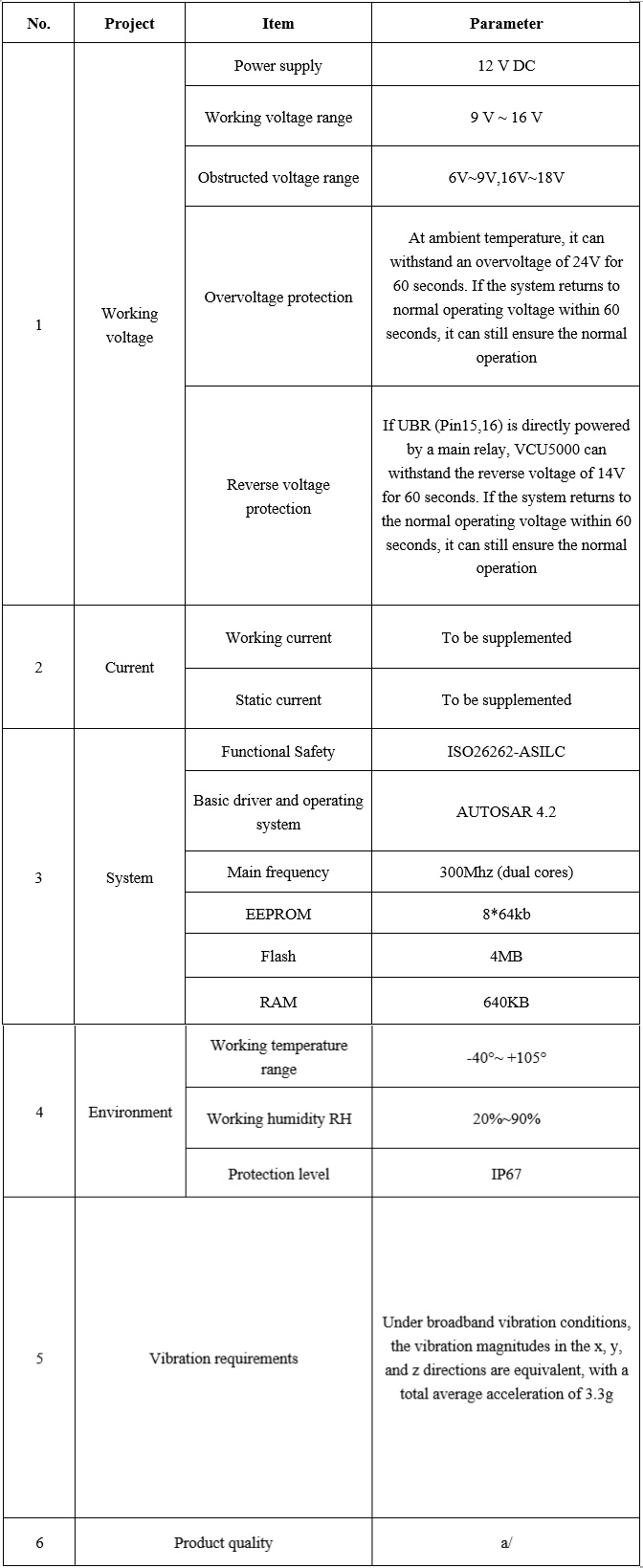

Technical Parameter Table

Note: If UBR (Pin15,16) is directly powered by a battery, VCU4300 will not have anti reverse function, and reverse voltage will burn out some electronic devices. VCU4300 will be no guarantee of the normal operation.

2.2  Interface Resources of Domain Controlle

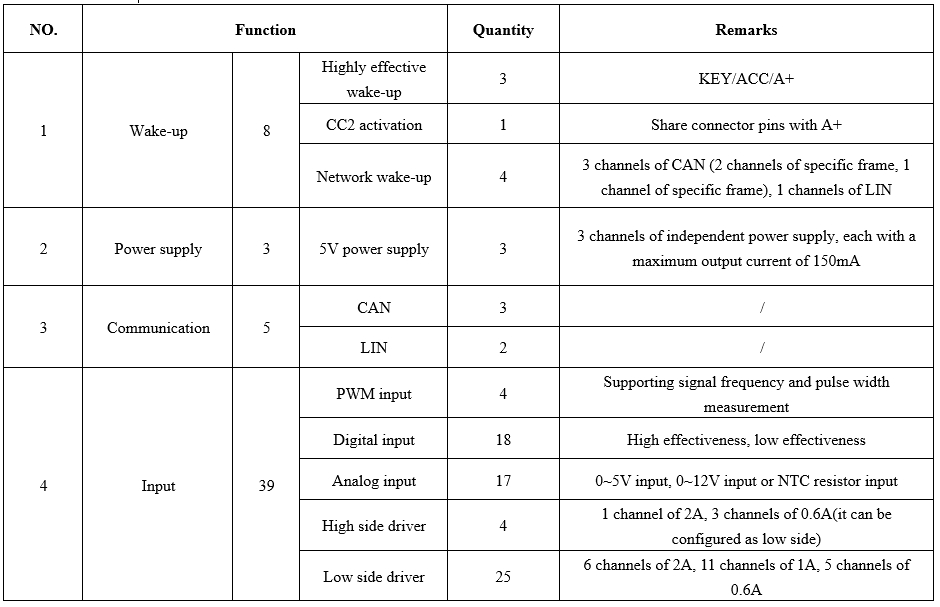

Interface Resources Table

3. Product Features

3.1  Domestically produced design to ensure supply chain security;

3.2  Adopting domestic 32-bit multi-core MCU, 300MHz main frequency, A/B partition;

3.3  Mainstream hardware interface resources, including 3 channels of CANFD, 2 channels of LIN, 25 channels of low side, 4 channels of high side, 43 channels of input,;

3.4  Functional Security level ASIL-C, CyberSecurity, and AUTOSAR4.2.2；

3.5  With high cost-effectiveness, suitable for various models of passenger cars/commercial vehicles.
